Brand Name : G·T
Model Number : GTK-12-48- 100
Place of Origin : China
MOQ : 1 PCS
Price : USD10-20 PCS
Payment Terms : T/T
Supply Ability : 500 pcs per month
Delivery Time : 10-15 working days upon order quantity
Packaging Details : Neutral factory box
Color : as shown in the figure
Warranty : 2 Years
Size : 50*40.5*22mm
11 V turn 12v10a voltage converter/5 V turn 12v2a voltage converter/dc-dc
Specification:
Model | GTK-0511 | |
The properties of module | Non-isolated BUCK | |
Input Voltage | DC5V-11V | |
Output Voltage | DC12V | |
Output Current | 2A -10A (optional) | |
Output Power | 24W-120W (optional) | |
Conversion Efficiency | >93% | |
Ripple | 40mV | |
Power Consumption | 25mA | |
Working Temperature | -40℃~+85℃(industrial-grade) | |
Two Input red lines | 13~14MM | |
Length of line | 50 CM | |
Size and Weight | 1A-4A | 50*40.5*22 97g |
10A | 74*74*32 260g | |
Waterproof Rate | IP67 |
Function:
Protection of over current, over voltage, over temperature, short circuit
notice: No backconnection protection
![]() |

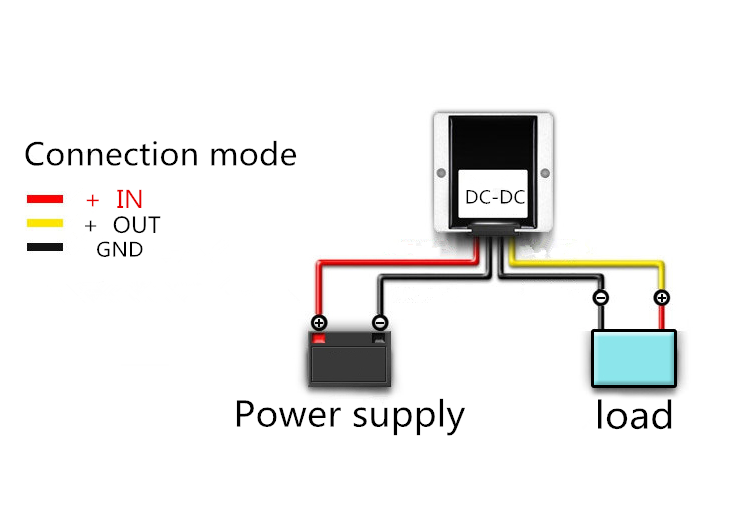

11 V turn 12v10a voltage converter/5 V turn 12v2a voltage converter/dc-dc Images |
